Description

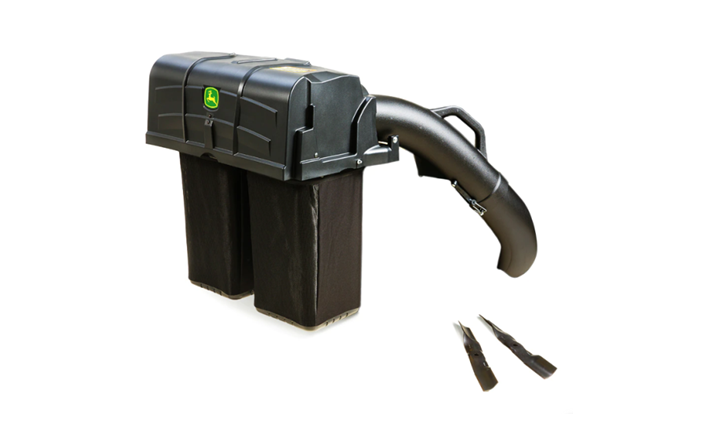

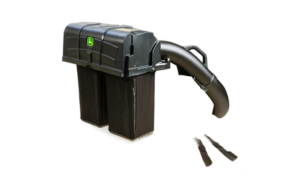

John Deere 229-L hopper and chute for 100 Series with 48 inch (121-cm) mower deck
John Deere
P/n: JD-BUC10286X
John Deere Grass Box for 100 series mowers with 48″ cutter decks – D140, D150, D155, D160, E140, E150, E160, E170, L120, LA145, LA155, LA165, S140, S160, S170
NOTE: Front ballast is recommended, especially on hills or inclines. Includes three bagging blades.
Bagging
- Two durable bags provide a generous 6.5-bu (229-L) capacity.
- The lower chute provides smooth airflow to reduce the chance of plugging.
- A duct directs air leaving the hopper toward the ground for clean operation.
- Loose-knit bags and a large exit duct allow more air flow to provide complete bag filling in wet grass conditions.
Emptying
- Monitor bag filling progress through a window; see light coming through the loose-knit bag or watch for grass lying against it.
- The hopper lid stays open while you empty the bags.
- The bags slide out with a pull and the handles make emptying easy.
- The hopper cover automatically latches when you close it.
Additional details
-
- Front ballast is recommended for your John Deere when bagging, especially on hills or inclines. Follow instructions in your operator’s manual.
- Use of rear tow-behind attachments that could contact the hopper assembly is not recommended.
- Installation:
- The John Deere bagger kit can be set up without tools in minutes.
- Special mower blades are not required for bagging. Three optional high-lift blades (GX21785) are included to increase bagging performance.
- The John Deere bagging kit is easy to remove and stores compactly. No parts are left behind to interfere with other attachments.
The 6.5-bu (229-L) hopper and chute are for use with:
- Model year 2011 and newer 100 Series Tractors with 48-in. (122-cm) mower deck
